Horizontal Turning Centers

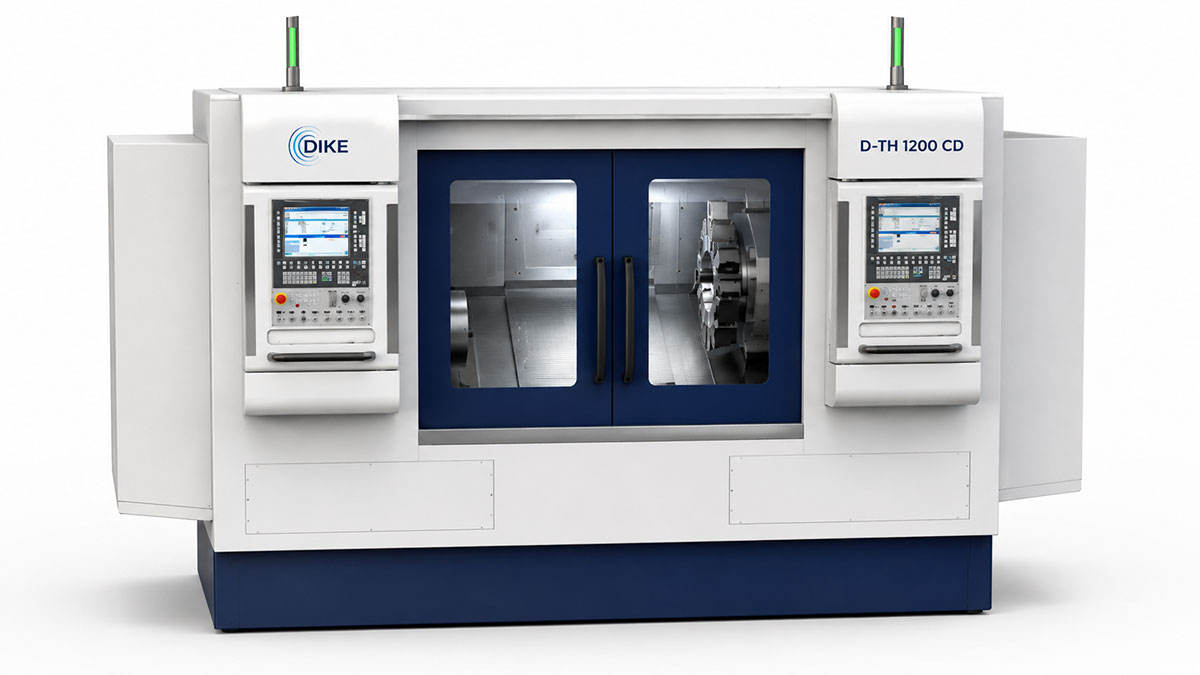

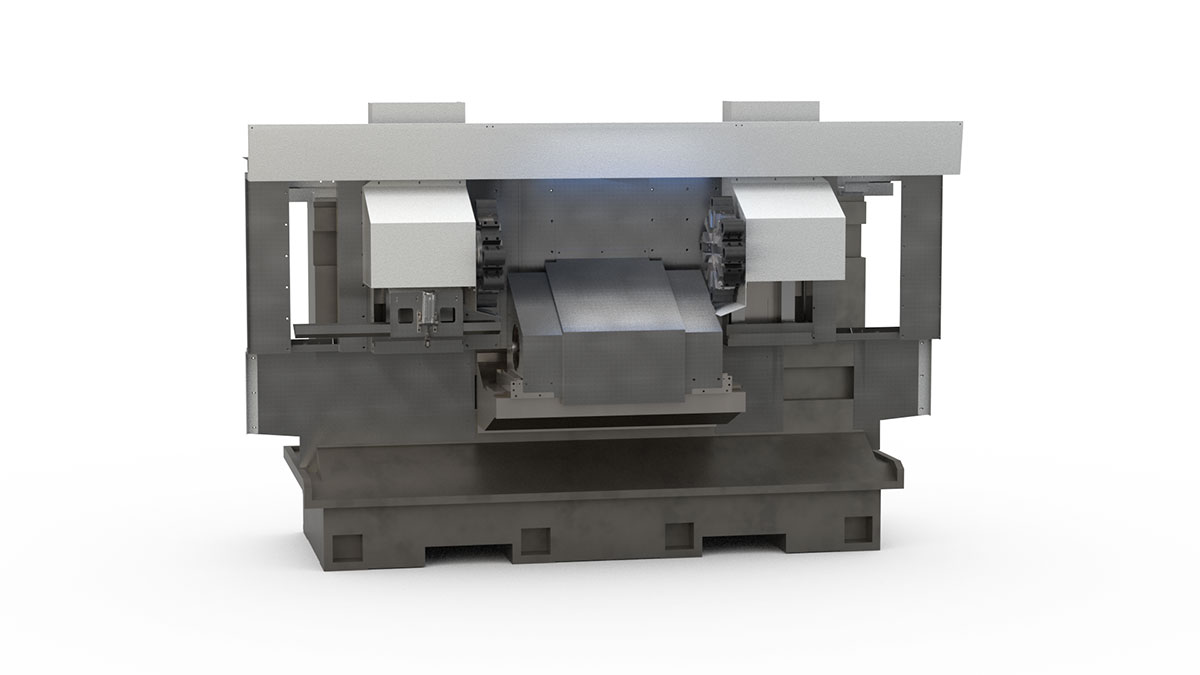

The O-TH 1200 CD is a high-performance horizontal turning center designed for efficient machining of tubes and bar-type workpieces. Featuring a central drive spindle and dual-turret configuration, the machine enables simultaneous machining of both ends, ensuring superior productivity and precision.
The O-TH 1200 CD is ideal for machining tubes, pipes, and bar-type components requiring high coaxial precision. It is widely used in industries such as energy, oil & gas, automotive, and general machinery manufacturing.
Machine Model |
O-TH 1200 CD |
|
Max. machining diameter |
mm |
120 |
Max. swing over bed |
mm |
200 |
Max. machining length |
mm |
1200 |
X1/X2-axis travel |
mm |
240 |
Z1/Z2-axis travel |
mm |
600 |
X1/X2/Z1/Z2-axis rapid traverse |
m/min |
20-30 |
Rated spindle power |
KW |
7.5 |
Max. spindle speed |
rpm |
2000 |
Number of tool stations |
T |
12*2 |
