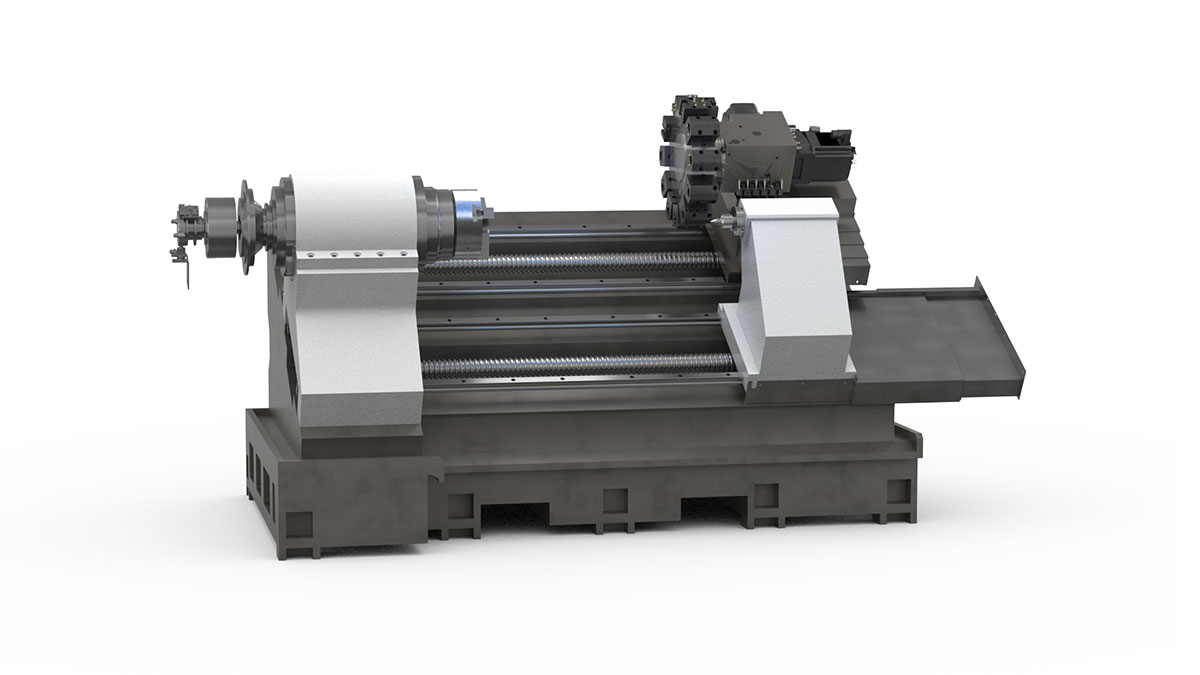

Horizontal Turning Centers
The O-TH Duo Series Horizontal Turning Centers are designed to provide maximum flexibility and productivity across a wide range of machining applications. With multiple configuration options, the machines can be tailored to meet specific production requirements, from standard turning to complex multi-process machining.
The O-TH Duo Series is suitable for machining a wide range of components, including shafts, flanges, precision mechanical parts, and complex components requiring multiple machining processes. It is widely used in automotive, aerospace, energy, and general machinery industries.
Machine Model |
O-TH 200 duo |
||
Max. machining diameter |
mm |
200 |
|
Max. swing over bed |
mm |
350 |
|
Max. machining length |
mm |
200 |
|
X1/X2-axis travel |
mm |
230 |
|
Z1/Z2-axis travel |
mm |
680 |
|
X1/X2/Z1/Z2-axis rapid traverse |
m/min |
20-30 |
|
Spindle nose |
\ |
A2-6 |
|
Rated spindle power |
KW |
22 |
|
Max. spindle speed |
rpm |
4000 |
|
Rated spindle torque |
N.M |
106 |
|
Number of tool stations |
T |
12*2 |
