Horizontal Turning Centers

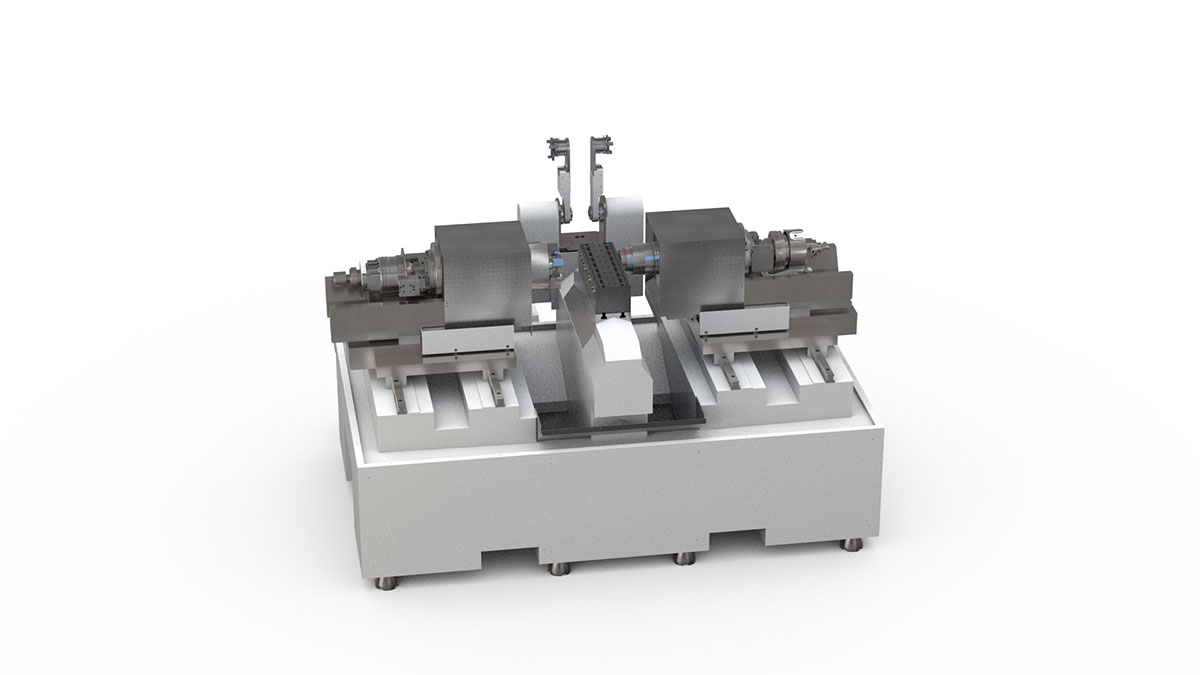

The O-TH 150 D is a high-precision horizontal turning center designed with two spindles integrated within a single working area. This configuration enables continuous machining and significantly improves productivity while maintaining excellent accuracy.
The O-TH 150 D is ideal for machining precision components requiring multiple operations, including shafts, bushings, flanges, and other high-precision parts. It is widely used in automotive, precision engineering, and general machinery industries.
Machine Model |
O-TH 150 D |
|
Max. machining diameter |
mm |
150 |
Max. swing over bed |
mm |
350 |
Max. machining length |
mm |
80 |
X1/X2-axis travel |
mm |
250 |
Z1/Z2-axis travel |
mm |
500 |
X1/X2/Z1/Z2-axis rapid traverse |
m/min |
20-30 |
Spindle nose |
\ |
A2-6 |
Rated spindle power |
KW |
17.3 |
Max. spindle speed |
rpm |
4000 |
Rated spindle torque |
N.M |
110 |
