Horizontal Turning Centers

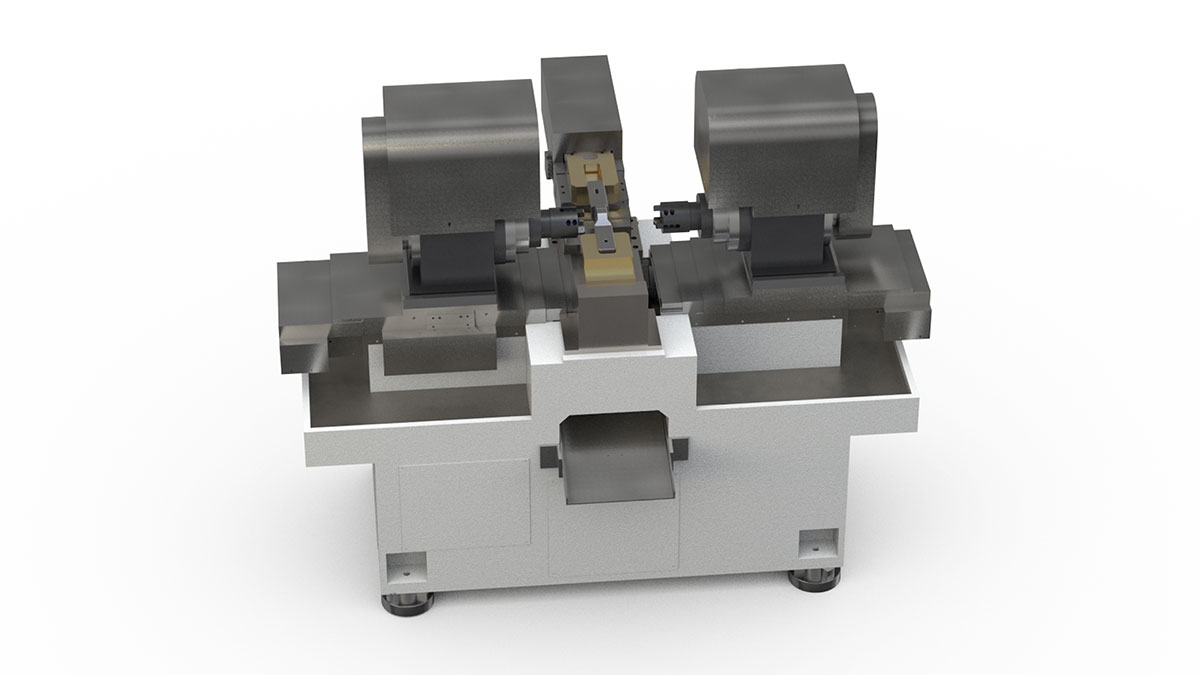

The O-TH 120 C is a fully automated lathe specifically designed for simultaneous end facing and chamfering operations on both ends of a workpiece. Its unique central clamping concept combined with a dual-turret configuration ensures maximum efficiency and precision in high-volume production environments.
The O-TH 120 C is ideal for machining components requiring precise end facing and chamfering, including tubes, bars, shafts, and cylindrical parts. It is widely used in automotive, energy, and general machinery industries.
Machine Model |
O-TH 120 C |
|
|---|---|---|
Max. machining diameter |
mm |
150 |
Max. machining length |
mm |
500 |
Z1/Z2-axis travel |
mm |
150 |
X/Z-axis rapid traverse |
m/min |
20-30 |
Rated spindle power |
KW |
3 |
Max. spindle speed |
rpm |
1500 |
Number of tool stations |
T |
3*2 |
