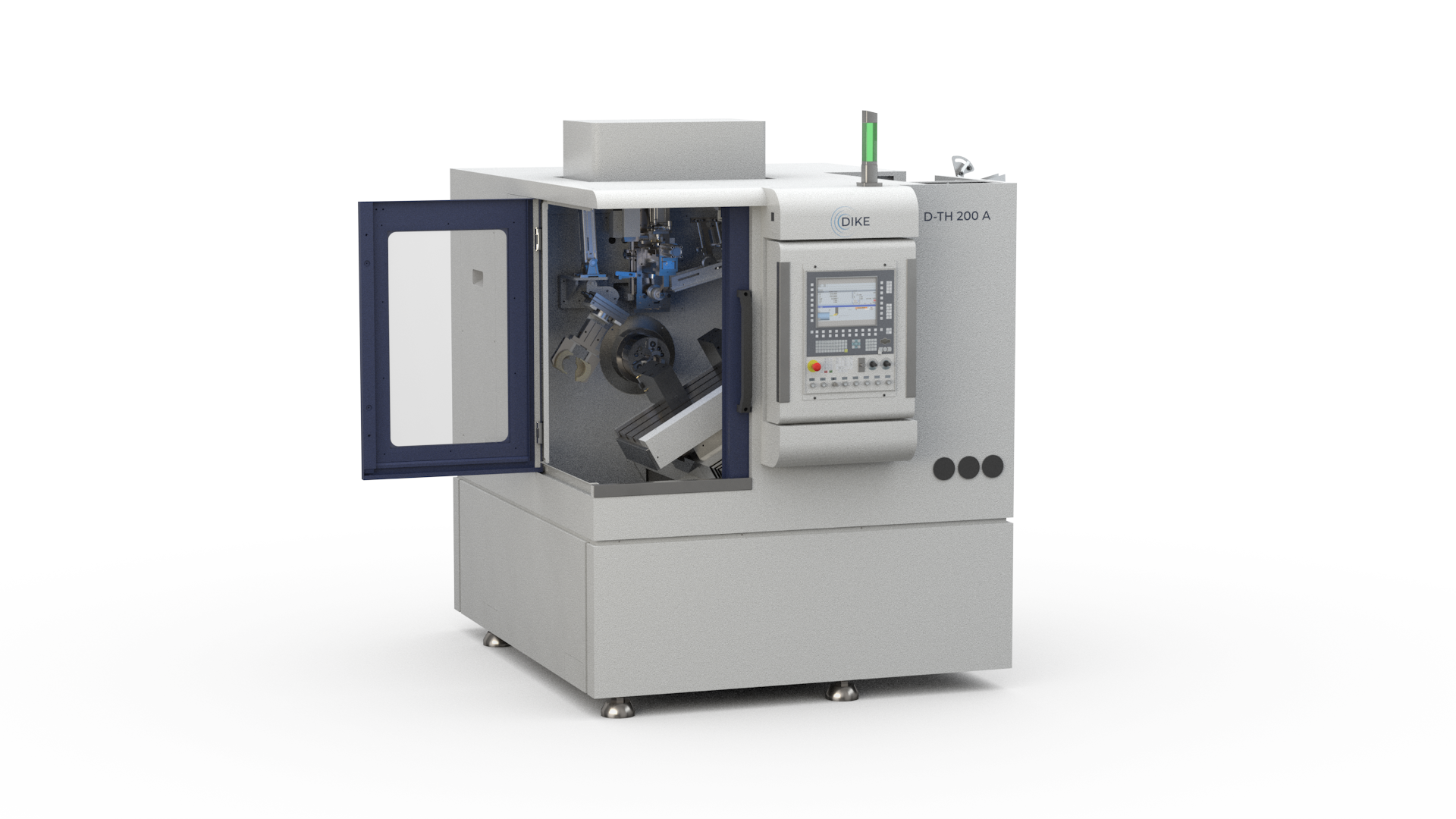

The O-TH 200 A Slant Bed Automatic Lathe is a fully automatic, modular turning solution designed for high-efficiency machining of parts with diameters up to 200 mm. It is ideal for applications requiring consistent quality, high throughput, and seamless integration into automated production lines.
Designed with strong horsepower, high efficiency, and high rigidity to handle complex machining tasks
The DKCK-M5 offers excellent performance for turning forging blanks, ensuring high precision and accuracy
Features the M5 special made high precision spindle unit with stepless speed change, reaching up to 3000 r/min
Integrated with Siemens 808D control system and Schneider electrical components for reliability and ease of operation
Utilizes Hiwin/PMI ball screw and linear guide from Taiwan for superior performance and longevity
Equipped with a built-in high-speed uploading and downloading mechanism for seamless automation
Built-in mechanical arm for connecting two machines, facilitating loading, unloading, clamping, and machining for high productivity, ideal for batch production
Driven by a 7.5KW servo motor and servo motor with 10N*M torque for the X/Z axis, providing fast and accurate movements
Item |
Name |
Parameter |
Machining Range |
Max. Rotating Diameter |
Ø450mm |
Maximum Clamping Diameter |
Ø150mm |
|
Automatic Range |
Automatic Uploading |
M5 Built-in high-speed uploading mechanism |
Automatic Downloading |
M5 Built-in high-speed downloading mechanism |
|
Composition |
Maximum Stroke X/Z |
350/250mm |
Fast Move Speed X/Z |
20m/min |
|
Automatic Clamp |
Dike Research |
|
Spindle Motor Power |
7.5KW servo motor |
|
Spindle |
M5 special made high precision spindle unit |
|
Spindle RPM |
3000r/min stepless speed change |
|
Ball Screw/Linear Guider |
Hiwin/PMI, Taiwan |
|
Machine Structure |
High-quality casting |
|
Electricity Parts |
Electrical Components |
Schneider |
Control System |
Siemens 808D |
|
Driving Type |
Servo motor 10N*M (X/Z) |
|
Overall Size |
Overall Dimensions |
2000X1500X1700 mm |
Net Weight |
3.5T |
Inner Ring |
Outer Ring |
Diameter Size Repeat Positioning Error |
＜0.02mm |
Wall Thickness Difference |
＜0.02mm |
Roundness Error |
＜0.02mm |
Dust Groove Height Repeat Positioning Error |
＜±0.02mm |
Roughness |
≤1.6mm |

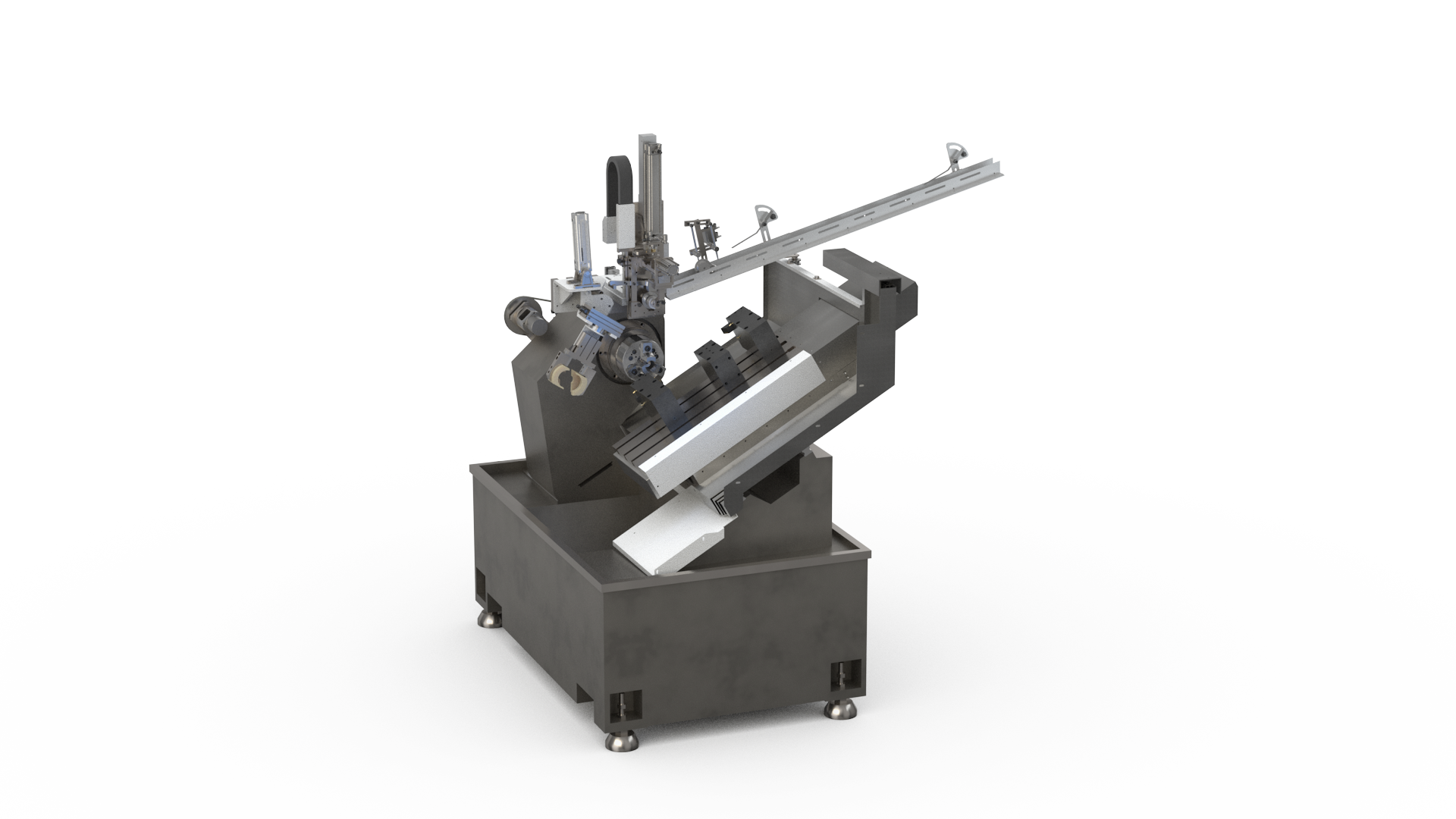

DKCK-M5 Built-in Mechanical Arm: Enables the connection of two machines for streamlined loading, unloading, clamping, and machining. This setup is ideal for batch production, ensuring high productivity and efficiency.
