Horizontal Turning Centers

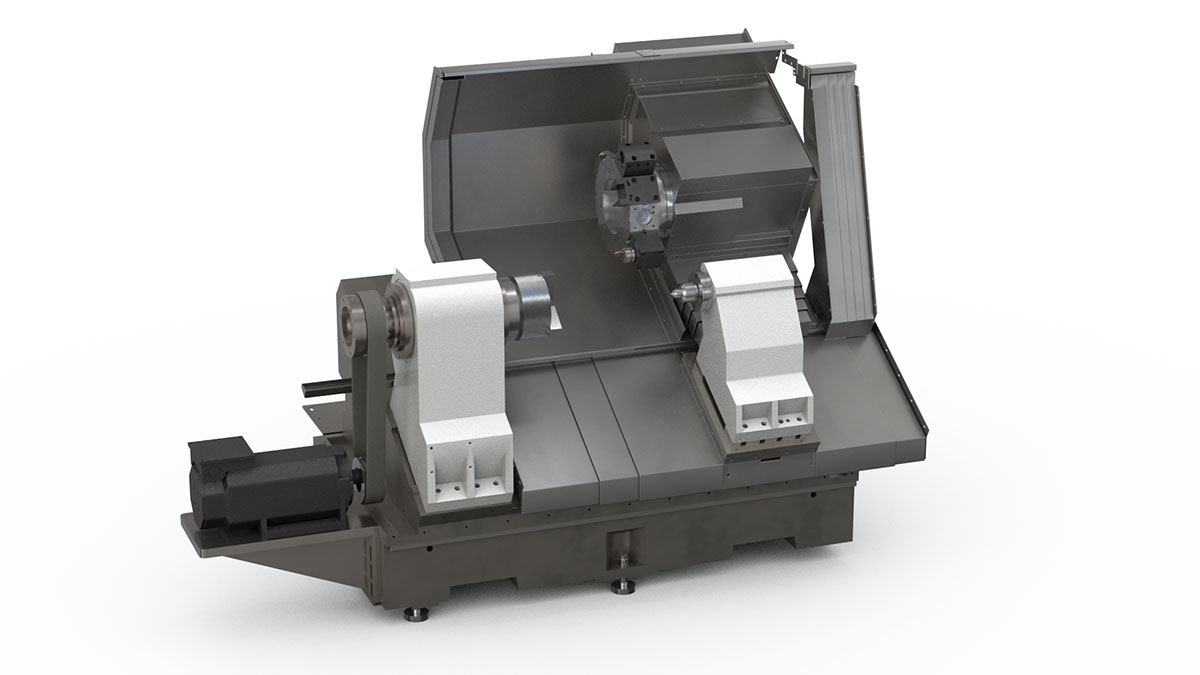

Horizontal Turning Centers O-TH Series

The O-TH Series Horizontal Turning Centers are engineered for high-productivity machining across a wide range of part families. Combining advanced structural design with flexible configuration options, these machines deliver excellent performance, stability, and machining accuracy in demanding production environments.


Send Inquiry

Structure & Design

The machines feature a highly rigid bed structure, available in either synthetic granite with superior vibration-damping characteristics or high-quality cast iron with enhanced ribbing. This ensures excellent vibration absorption and thermal stability, enabling consistent precision even during long production cycles.


Key Features

1

Rigid machine bed made of synthetic granite or ribbed cast iron

2

Excellent vibration damping and thermal stability

3

Optimized for a wide range of part families

4

High-performance horizontal turning capabilities

5

Flexible configuration for diverse machining requirements

Optional Configurations

1

Y-axis for turret movement, enabling complex and off-center machining

2

Counter spindle for two-setup machining with minimal auxiliary time

3

Reduced handling time by eliminating repeated loading and unloading

Advantages

1

High productivity across multiple part types

2

Improved machining precision through superior rigidity

3

Enhanced process stability with reduced vibration

4

Shorter cycle times with optional counter spindle

5

Flexible adaptability to various production needs

Applications

The O-TH Series is suitable for machining a wide range of components, including shafts, flanges, housings, and general precision parts. It is widely applied in automotive, aerospace, energy, and general machinery industries.


Detailed technical parameters

Max. machining diameter

mm

160

Max. swing over bed

mm

550

Max. machining length

mm

400

X-axis travel

mm

240

Z-axis travel

mm

475

X/Z-axis rapid traverse

m/min

20-30

Spindle nose

\

A2-5

Rated spindle power

KW

15

Max. spindle speed

rpm

4000

Rated spindle torque

N.M

105

Number of tool stations

T

12
