Horizontal Turning Centers

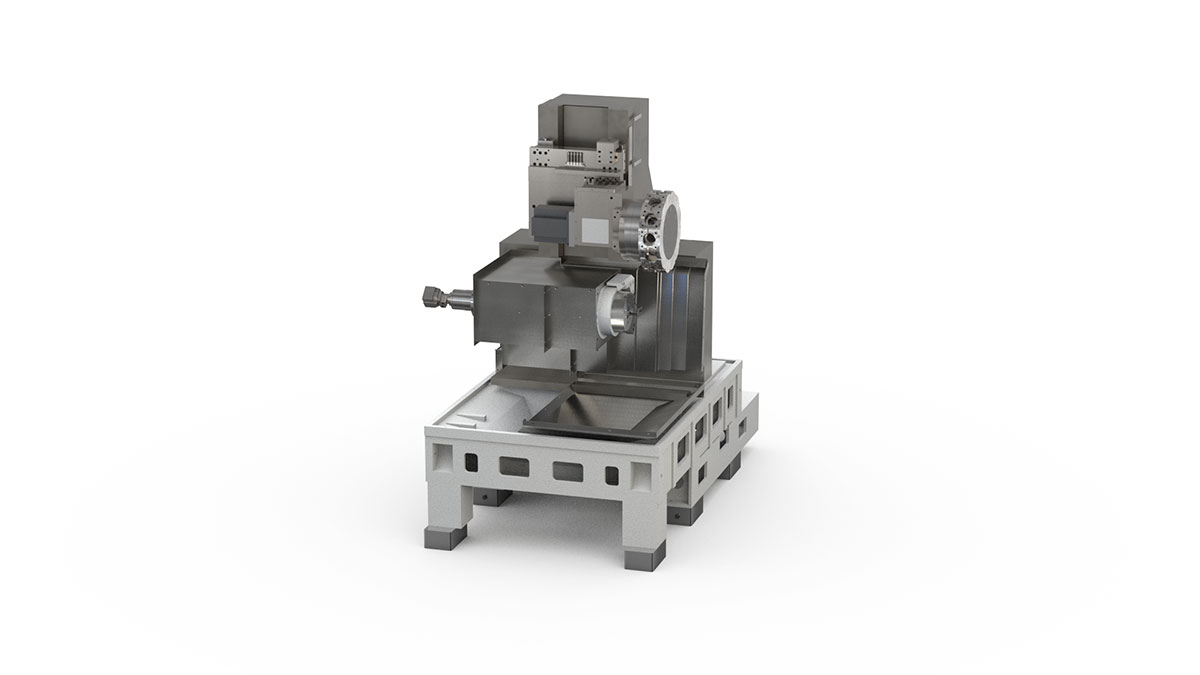

The O-THM 200 is a high-performance turning and milling machining center designed specifically for integration into automated production lines. Combining turning and milling capabilities in a single platform, the machine delivers exceptional flexibility, efficiency, and precision for modern manufacturing environments.
The O-THM 200 is suitable for machining complex components requiring both turning and milling operations, including automotive parts, precision mechanical components, and general industrial parts. It is widely used in automated production systems across various industries.
Machine Model |
O-THM 200 |
|
Max. machining diameter |
mm |
200 |
Max. swing over bed |
mm |
250 |
Max. machining length |
mm |
200 |
X1/X2-axis travel |
mm |
260 |
Z1/Z2-axis travel |
mm |
520 |
X1/X2/Z1/Z2-axis rapid traverse |
m/min |
20-30 |
Spindle nose |
\ |
A2-6 |
Rated spindle power |
KW |
22 |
Max. spindle speed |
rpm |
4000 |
Rated spindle torque |
N.M |
106 |
Number of tool stations |
T |
12*2 |
