Multifunctional Vertical Machining Center D-TMV 1000-5

The D-TMV 1000-5 is a multifunctional five-axis vertical machining center designed for highly complex machining applications. Combining turning, milling, drilling, and gear skiving capabilities within a single setup, the machine delivers exceptional flexibility, precision, and productivity for advanced manufacturing environments.

Send Inquiry

Key Features

Advanced five-axis machining capability

Optional sixth axis for tool spindle rotation

Lower main spindle with Y-axis movement and indexed swivel rotation

Tool spindle movement along X and Z axes

Tool spindle rotation range from –30° to +120°

24-position automatic tool magazine

Supports turning, milling, drilling, and gear skiving in one setup

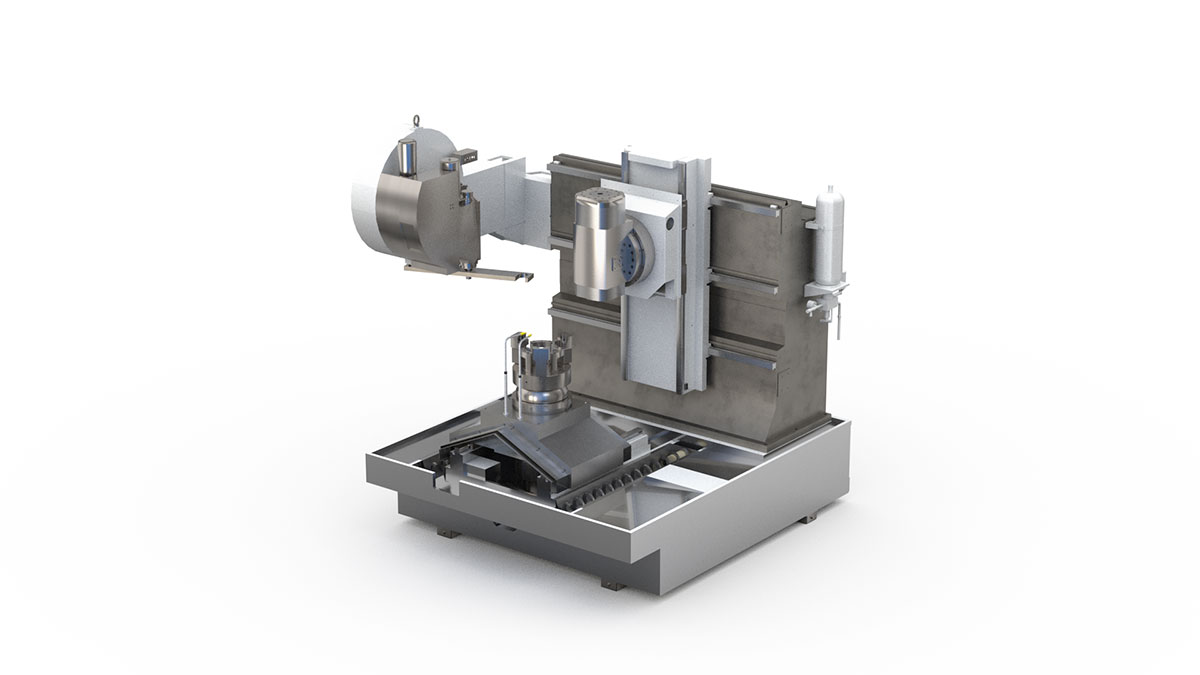

Column-type machine base for high rigidity and vibration resistance

Advantages

Single-setup machining for maximum precision and efficiency

Reduced cycle time and minimized workpiece handling

Capability to machine highly complex contours and geometries

Flexible multi-process machining within one platform

Excellent stability and vibration damping for superior surface quality

Ideal for automated and high-precision production environments

Applications

The D-TMV 1000-5 is ideal for machining complex precision components, including gears, aerospace parts, automotive components, precision housings, and advanced mechanical parts requiring multi-axis machining.

Detailed technical parameters

Machine Model		O-TMV 1000-5
Max. machining diameter	mm	600
Max. swing over bed	mm	850
Max. machining length	mm	500
X-axis travel	mm	1130
Y-axis travel	mm	300
Z-axis travel	mm	370
X/Y/Z-axis rapid traverse	m/min	32/20/32
Rated spindle power	KW	37.7
Max. spindle speed	rpm	3000
Rated spindle torque	N.M	600
Number of tool stations	T	24
