Multifunctional Horizontal Machining Center

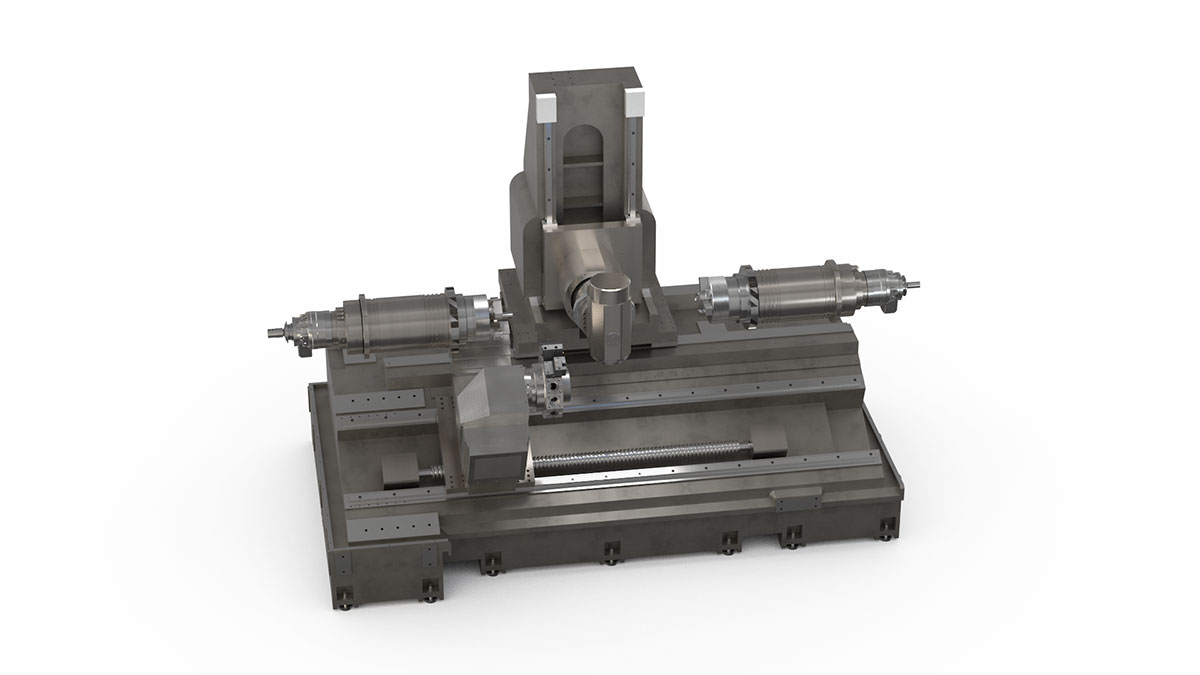

The D-TMH 1500-5 is a multifunctional five-axis horizontal machining center designed to handle complex turning and milling operations within a single setup. Combining advanced multi-axis machining capability with flexible configuration options, the machine delivers exceptional precision, productivity, and process integration for modern manufacturing environments.

Send Inquiry

Key Features

Advanced five-axis horizontal machining capability

Optional milling spindle, turret, Y-axis milling slide, counter-spindle, and steady rest

Tool spindle movement along X, Y, and Z axes

Tool spindle swivel capability up to +120°

30-position automatic tool magazine in standard configuration

Integrated turning, milling, drilling, and gear skiving operations

Supports complex contour machining through coordinated axis movement

Automation-ready multi-process machining platform

Advantages

Single-setup machining improves accuracy and consistency

Reduced cycle time and minimized workpiece handling

Flexible machine configuration for various machining tasks

Capability to machine highly complex geometries

High productivity through integrated multi-process operations

Ideal for automated and high-precision production environments

Applications

The D-TMH 1500-5 is ideal for machining complex precision components, including aerospace parts, automotive components, transmission parts, precision shafts, and advanced mechanical structures requiring multi-axis machining and gear skiving.

Detailed technical parameters

Machine Model		O-THM 1500-5
Max. machining diameter	mm	670
Max. swing over bed	mm	770
Max. machining length	mm	1600
X1/X2-axis travel	mm	725/250
Y-axis travel	mm	340
Z1/Z2/Z3-axis travel	mm	1800/1500/1500
X/Y/Z-axis rapid traverse	m/min	20-30
Rated spindle power	KW	61.3/67.4
Max. spindle speed	rpm	3500/2500
Rated spindle torque	N.M	325/585
Number of tool stations	T	48
