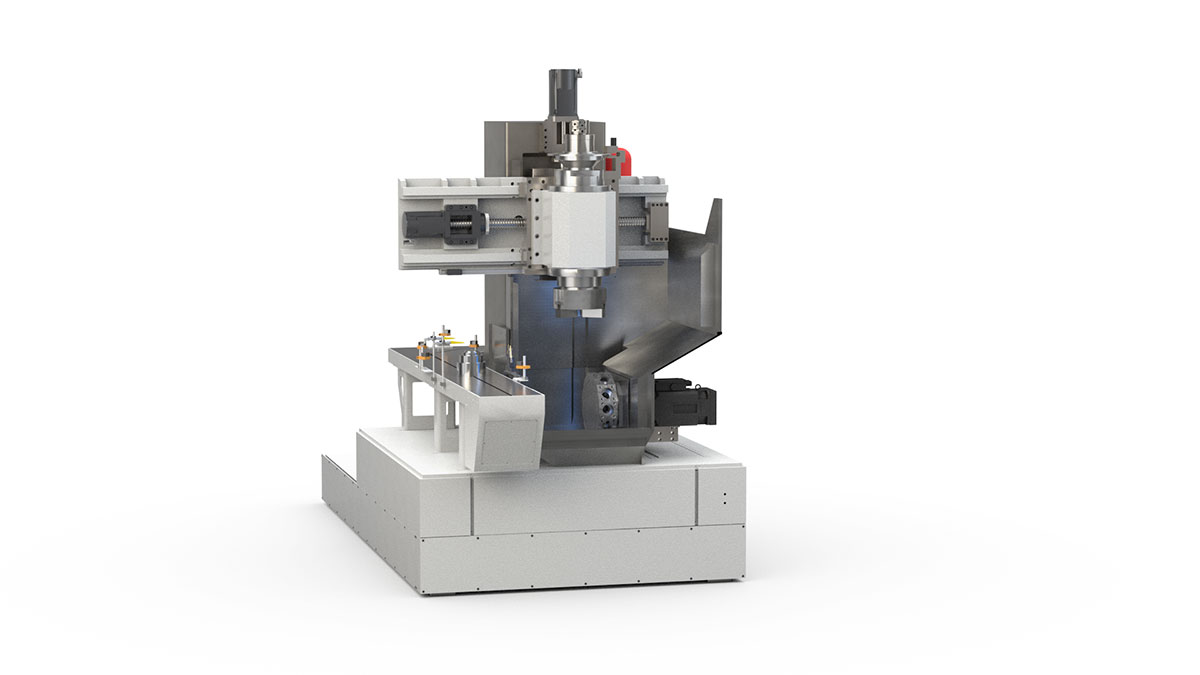

Vertical Turning Centers
The O-TV Series Vertical Turning Centers are designed to deliver outstanding productivity, precision, and automation for modern manufacturing environments. Featuring an upper-mounted spindle with integrated automatic loading and unloading capabilities, these machines streamline production processes while minimizing manual intervention.
The O-TV Series is ideal for high-volume production of automotive and industrial components, including brake discs, hubs, bearing rings, and other precision parts requiring stable and efficient machining.
Machine Model |
O-TV 150/350/550 |
|
Max. machining diameter |
mm |
200/350/550 |
Max. swing over bed |
mm |
250/400/630 |
Max. machining length |
mm |
150/200/300 |
X-axis travel |
mm |
590/760/1130 |
Z-axis travel |
mm |
320/420/550 |
X/Z-axis rapid traverse |
m/min |
20-30 |
Spindle nose |
\ |
A2-6/8/11 |
Rated spindle power |
KW |
22/26.8/37.7 |
Max. spindle speed |
rpm |
4500/4000/3000 |
Rated spindle torque |
N.M |
140/320/600 |
Number of tool stations |
T |
12 |
