Vertical Turning Centers

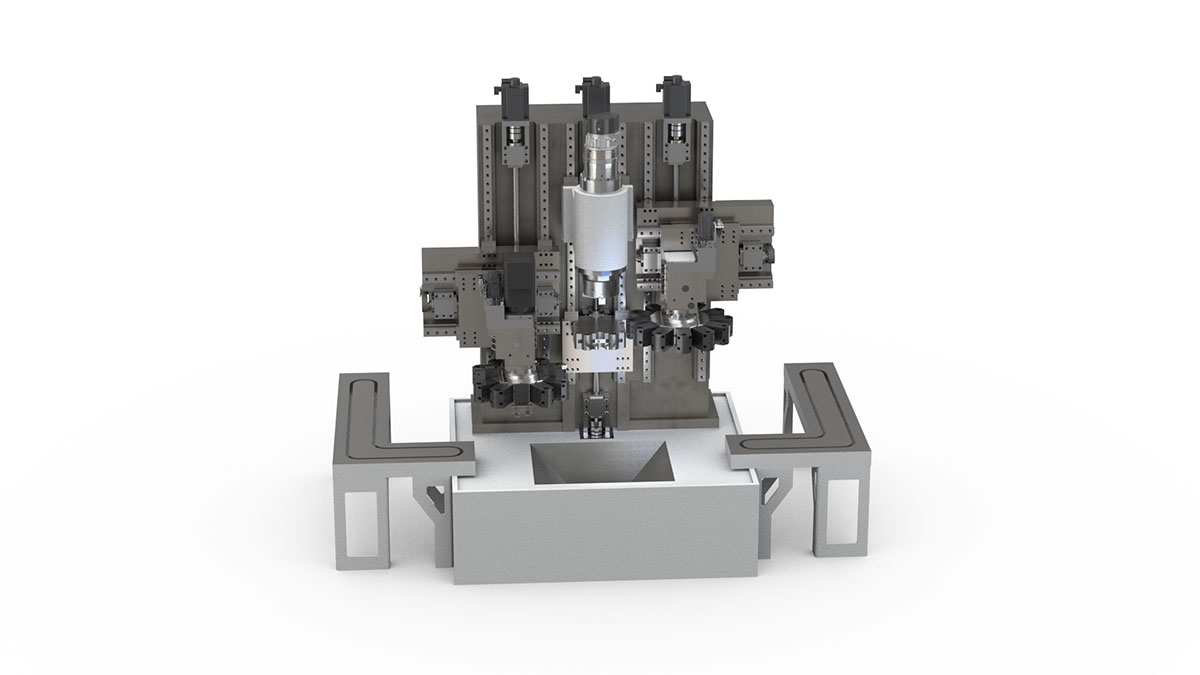

The O-TV 630 SH Vertical Turning Center is specifically designed for the efficient machining of shaft-type workpieces. Combining a vertical machine structure with a dual-turret configuration, this machine delivers exceptional productivity and process stability for demanding production environments.
The O-TV 630 SH is ideal for high-efficiency machining of shaft-type components, including transmission shafts, motor shafts, and other precision cylindrical parts used in automotive, energy, and general machinery industries.
Machine Model |
O-TV 630 SH |
|
Max. machining diameter |
mm |
200 |
Max. swing over bed |
mm |
400 |
Max. machining length |
mm |
630 |
X-axis travel |
mm |
300 |
Z-axis travel |
mm |
650 |
Y-axis travel |
mm |
±50 |
Rated spindle power |
KW |
27/36.6 |
Rated spindle torque |
N.M |
320/389 |
Number of tool stations |
T |
2*12 |
