Skiving machining center for Gears

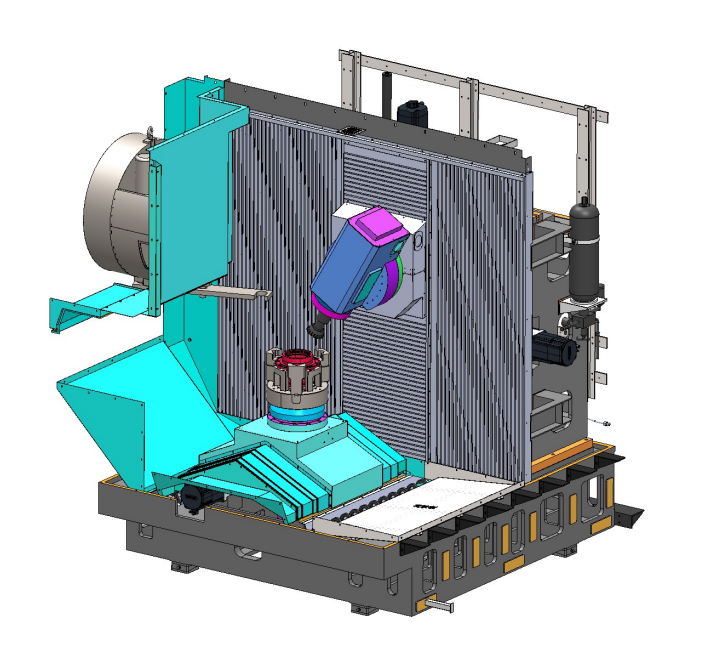

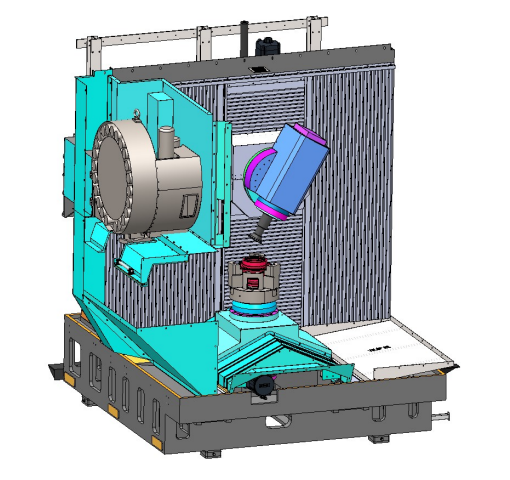

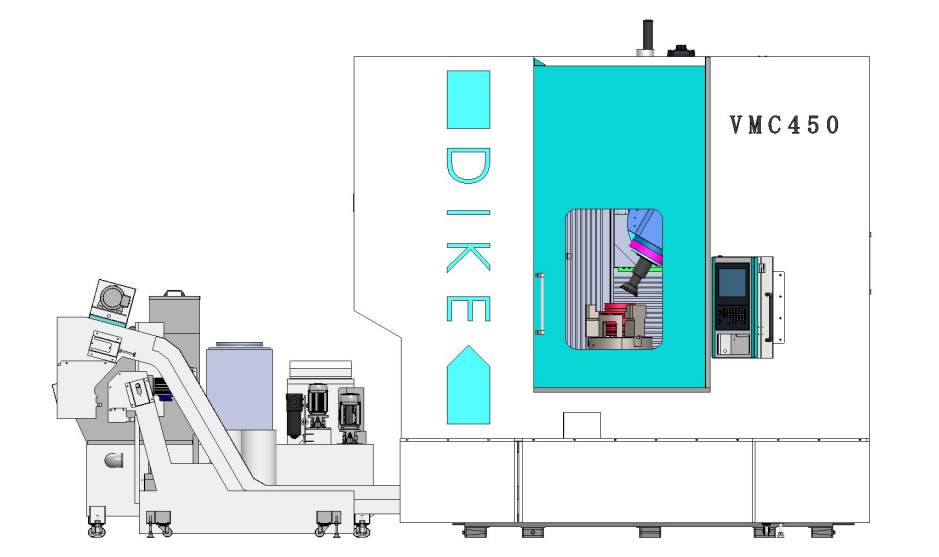

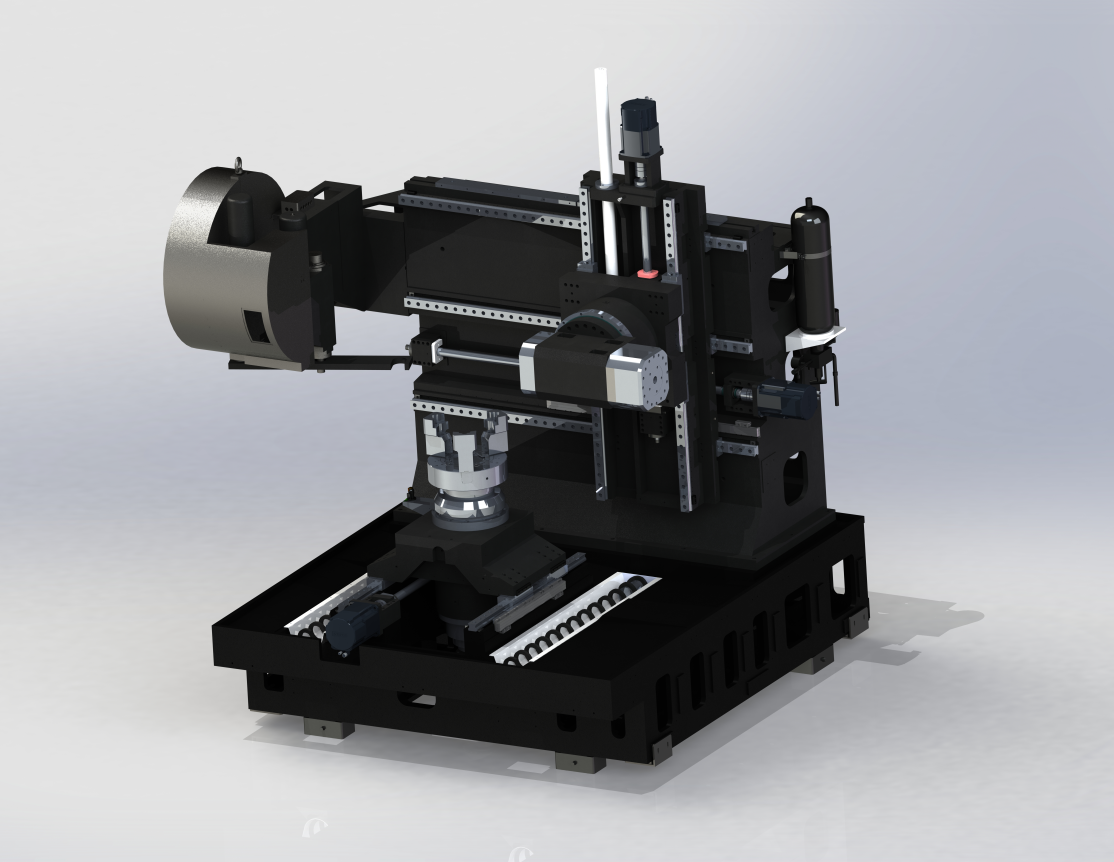

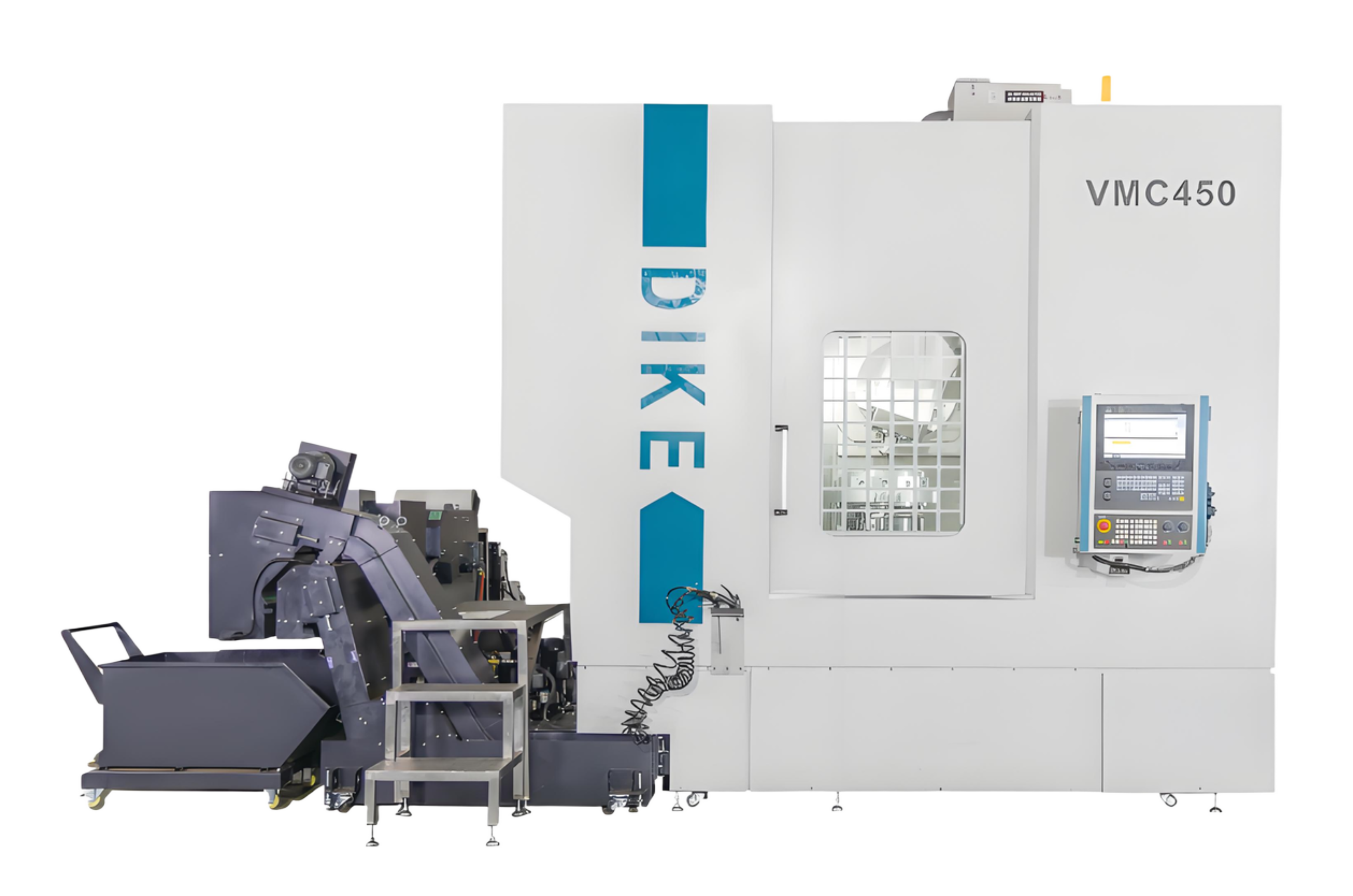

Skiving machining center for Gears DKCK-VMC450, the machine is a vertical 5+1 axis machine that can process heavy parts for inclined holes, milling bevels and turning. The equipment has a B axis on the milling spindle and a Y axis on the workpiece spindle. These additional shafts enable the production of complex geometric parts.
| Max. Workpiece Diameter | Ø850 mm |
| Max. Workpiece Length | 500 mm |
| Main Spindle Power | 15 kW |
| Spindle Speed Range | 5-3500 r/min |
| Main Motor Rated Speed | 780 r/min |
| Transmission Mode | Motorized Spindle |
| X/Y/Z-Axis Travel | 1400/450/1000 mm |
| X/Y/Z-Axis Rapid Traverse | 20-32 m/min |
| Spindle Run-Out | 0.005 mm |
| Grating Absolute Measurement Resolution | 0.001 mm |
| Repeat Positioning Accuracy | 0.003 mm |
High Efficiency
The six-axis five-linkage system can simultaneously perform multi-axis processing, reducing tool and fixture changeover time and significantly improving productivity.
Comprehensive Processing

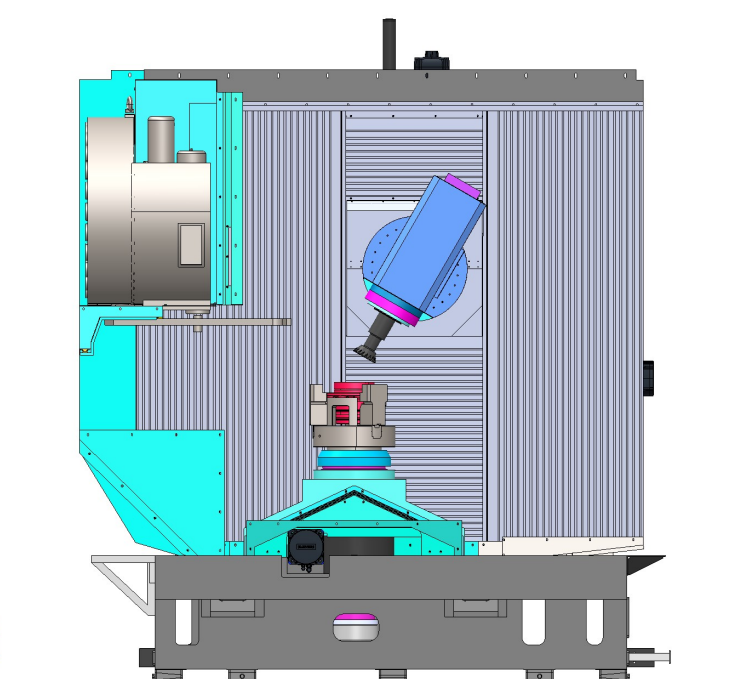

The tilting head system allows processing from multiple angles, covering more complex shapes and geometries to meet diverse customer needs.
Cost-Effective
The high degree of automation reduces manual operation, enhances the automation level of production, and lowers production costs.
Precision Machining
The high-precision design and stability ensure parts are processed to the highest standards, meeting the strict technical requirements of various industries.
